Autoclaved Aerated Concrete Reinforced Panel (PAAC)
Autoclaved Aerated Concrete is a complete system providing flexibility for builders to choose blocks or panel for building construction.
Panels are produced with thicknesses from 10 to 37.5 Cm. Similarly to blocks, the autoclave aerated concrete has a density of 500 Kg/m3, and the reinforcement is varied with respect to application and size of panels.

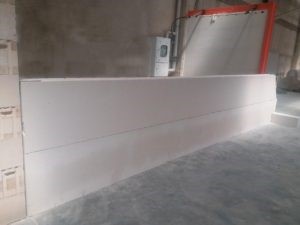

Blow picture shows a 20 Cm thick panel produced by Parin Beton Amood reinforced with two layers of steel meshes.
Parin Beton Amood’s Panels are produced with and without tong and grooves. They are glued together with Parin Beton Amood’s thin bed mortar (Block Adhesive). Panels are secured and connected to columns with the flexible tie fasteners (figure below).

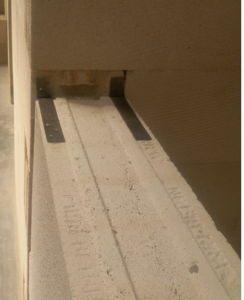

Connection for each panel to columns as shown

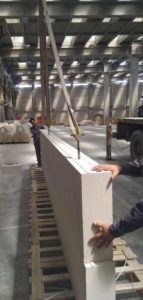

There are lifting hooks installed in each panel for installation

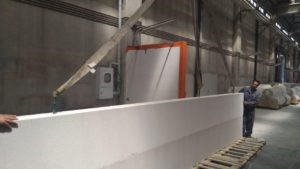

Panels displacement and installation are easily done with the aid of installed hooks. Smooth and accurate dimensions of the panels provide a plumb and smooth surface for wall.
Parin Beton Amood panels are produces according to client’s requirement and with the following dimensions:
|
Reinforced Panels |
Dimensions (Cm) |
||||
|
Thickness |
10 |
12.5 |
15 |
17.5 |
20 |
|
Height |
60 |
||||
|
Length |
100 to 600 |
||||
|
Class |
AAC2 – AAC4 |
||||
Please contact us for further information

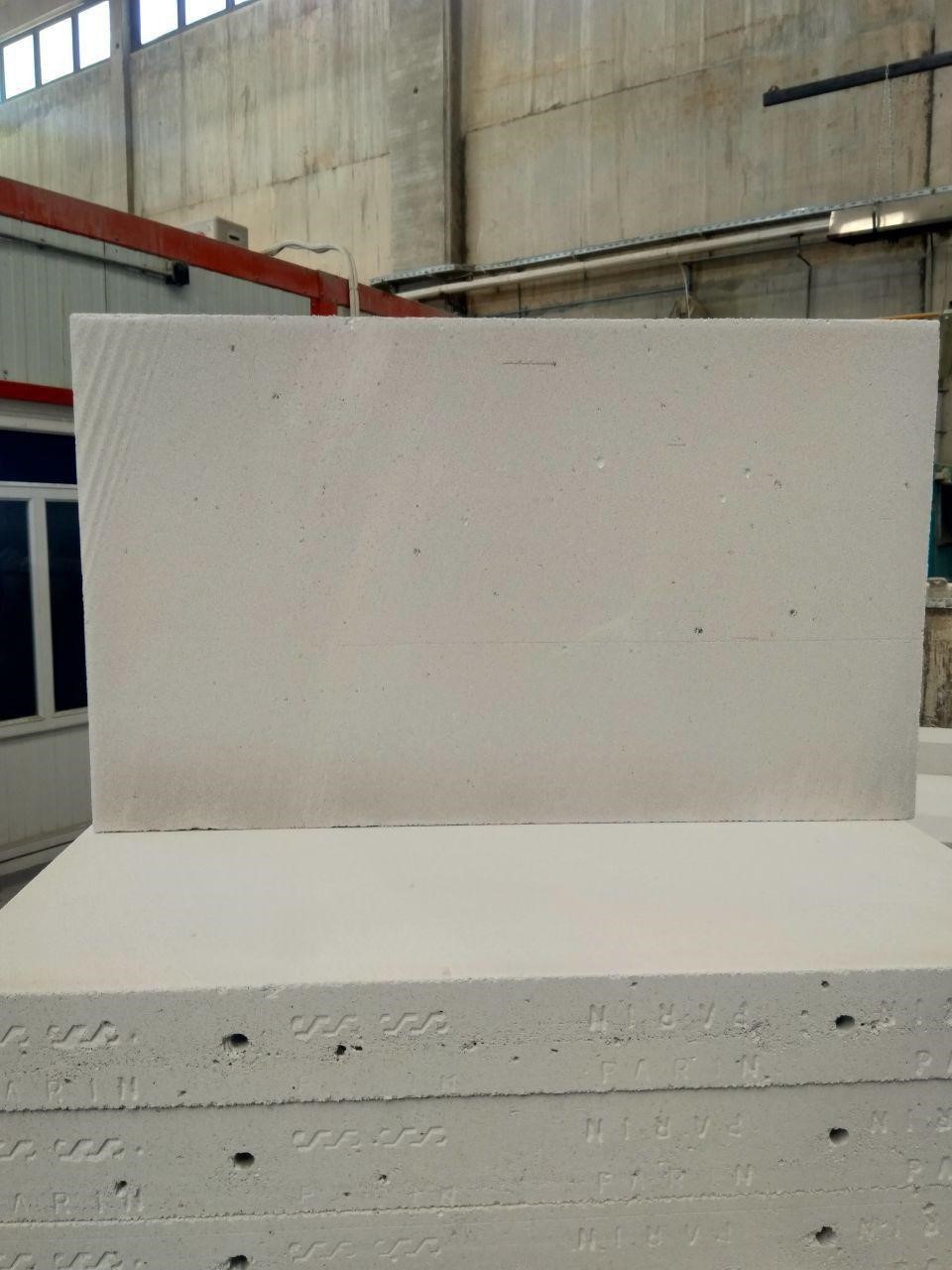

New reinforced panels with different dimensions, 10 Cm thick, 60 Cm height and 100 Cm length
